Network Pivoting

How it all started?

What is network pivoting? So, after lots of hard work and brainstorming you finally got that sweet Reverse Shell then you escalated your privileges and then you came to know that this current compromised system is not the real target.

The TARGET is AD Controller or Admin Desktop and so on which simply arise a simple logical question how to get access to those system or How to Pivot from machine to machine.

What is Network Pivoting?

Pivoting is the method in which we get access obtained over one machine to exploit another machine deeper in the network.

Using Pivoting it becomes possible for an attacker [ once it gains initial access to a remote network System] to access other machines in the network that would not otherwise be accessible

There are two main methods through which we can perform Network Pivoting:

  • Proxying: Using proxy-type connection through a compromised machine to route all desired traffic into the targeted network. This method can be useful for evading a Firewall.
  • Port Forwarding: Creating a connection between a local port and a single port on a target, or vice-versa via a Compromised Host.

In this Blog we are going to use the following Topology:

Also, Attacker already Compromised the Public Server.

Network Pivoting

Below is the Network Configuration of the Attacker System

Network Pivoting
Network Pivoting

Let’s Start.

Method First: Local Port Forwarding using SSH

In real-life Scenarios, Local Port Forwarding is just like Bind Shells as they are going to be blocked by an IDS or a Firewall but for completeness, we are discussing it.

Initially, we are not able to access the Remote Service Running at Internal System:

Network Pivoting

As we can see we are making an SSH connection from Attacker System to Target System.

Network Pivoting

-L –> Specifying Local port [ must not be used by any different Service] and bind it with a service [http] running remotely [10.200.84.150].

After this command Attacker System is:

Network Pivoting

We can see Listing Connections to port 8000 created by the Process SSH.

Using the Local Port Forwarding whenever the Attacker sends some data to his Local Port 8000, that traffic using the SSH connection to Target System will hit the Remote Service.

Network Pivoting
Network Pivoting

Method 2: Remote Port Forwarding Using SSH

This is something like Reverse Shell, under this method Compromised System makes an SSH connection to our Attacker System, and then the Compromised System Port is Bind with Attacker System Service. Using this method, we can Bypass the Firewall.

Initially, we are not able to access the Remote Service Running at Internal System:

Network Pivoting

  SSH connection from Compromised Host:

Network Pivoting

-R –> We are binding Remote Port [4444] to Service [80] Running Remotely at 10.200.84.150 and creating an SSH Connection with Attacker System

-f –> Create a new process

After this Connection Attacker System is:

Network Pivoting

Let’s try to access the Remote Service Running in Internal System.

Network Pivoting
Network Pivoting

If we talk about Real-Life Scenarios, having an SSH connection is not a go-to option but how we can do Pivoting without having SSH Connection is the Skill a Penetration Tester must know.

Most of the Time we have a Shell through Netcat.

CHISEL
  • Chisel is a tool you can get from here: https://github.com/jpillora/chisel/releases
  • It can work on both Linux Based Systems as well as Windows Based [Chisel.exe]
  • The only requirement is you need to transfer this tool to a Compromised host.
  • Once Transferred we can do Local/Remote Port Forwarding as well as Proxy the Traffic.
  • It does not require any SSH Connection.

Method 3: Remote Port Forwarding using CHISEL

Initially, we are not able to access the Remote Service Running at Internal System:

Network Pivoting

On the Attacker System, we create a CHISEL Server which is listen for any Connection from CHISEL Client.

Network Pivoting

-p -> Specify the listening port of the CHISEL Server.

–reverse –> Specifying that it is a Reverse  Connection

On Compromised Host, using CHISEL Client we send a connection request.

Chisel client Attacker_IP:Listening_Port R:Remote_Port:Target_Ip:Target_Port

Network Pivoting

Here chisel connect to 10.50.85.196:5555 [Attacker] and then do Reverse Port Forwarding by BINDING Remote Port 30000 [On Attacker System] to Remote Service [HTTP] running at 10.200.84.150

Once Connection is Established, we can access the Remote Service Running in an Internal System.

Network Pivoting
Network Pivoting

Method 4: Proxy via CHISEL

Using Proxy, we don’t need to do Port Forwarding and we can directly access the Service.

Initially, we are not able to access the Remote Service Running at Internal System:

Network Pivoting

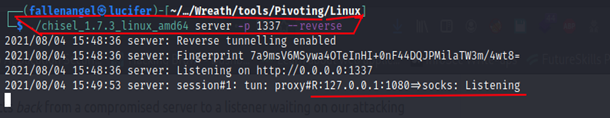

On the Attacker System, we create a CHISEL Server which is listen for any Connection from CHISEL Client.

Network Pivoting

We are listening on 1337 but Chisel opens the Proxy port at 1080, which means when we define the Proxy Settings, we need to state 1080, not 1337 Port.

On Compromised Host, using CHISEL Client we send a connection request.

Network Pivoting

R: socks –> specifying that we are using SOCKS5 proxy.

To access the Service via WEB Browser we need to change our Browser Settings First. For that, we are using FOXY-PROXY.

Network Pivoting

If the Service is not Web-Based, then you can use Proxy-Chains, and don’t forget to change the Proxy Settings.

Network Pivoting

Now is the time to Access the Service.

Network Pivoting

If we look URL, we directly specify the Internal System IP.

WHAT NEXT?

There are many different ways to pivot through a network.

Further research in your own time is highly recommended, as there are a great many interesting techniques.

For example:

  • On a fully rooted target, it’s possible to use the installed firewall — e.g., iptables or Windows Firewall — to create entry points into an otherwise inaccessible network.
  • Equally, it’s possible to set up a route manually in the routing table of your attacking machine to, routing your traffic into the target network without requiring a proxy tool like Proxy-chains or Foxy-proxy
  • Tools like sshuttle, plink.exe, SOCAT are great ones that help in Pivoting.
